Woven
Wire Partition-->Pre-Engineered Rooms |
|
|
|
|
|
|
|
|
|
|
| |
 |
Woven wire mesh security rooms provide
high-visibility security, safety, protection and access control. These pre-designed rooms are

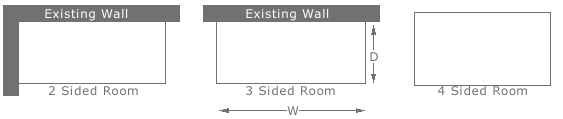

available with or without a roof, in 2, 3 and 4 sided
configurations. Constructed from high quality 10 gauge steel wire, woven into an extremely strong
frame for heavy-duty strength and enhanced
appearance. Modular components makes installation easy, usually requires no change to
existing heating, lighting or ventilation system. Components bolt together quickly and can be
easily relocated. Long-lasting maintenance-free powder coat gray finish. Available in 7', 8' and
10' high in five standard sizes ranging from 10' x 10' to 30' x 20'. All models can include a
5' W x 8' H sliding gate or hinged door with mortise cylinder lock, or service window as
required. |
|
| |
|
|
|
|
| |
Specifications£º
- 10 Gauge steel wire woven into 11/2" diamond mesh, securely clinched to framing.
- Vertical frames to be 11/4" x 5/8" cold rolled 'C' steel channels with 1/4" bolt holes.
- Horizontal frames to be 1" x 1/2" cold rolled steel channels.
- All joints to be mortised and tenoned.
- Center reinforcing bar to be two cold rolled steel channels 1" x 3/8" riveted throuth wire mesh at 3'6" from floor, additional bar required for 12' high partition.
- Top capping bar to be 11/2" x 1" cold rolled steel channel, with 1/4" bolts 30" O.C.
- Corner posts to be 11/4" x 11/4" steel angles with 1/4" bolt holes.
- Floor sockets to be cast aluminum.
- Door frames to be 11/4" x 1/2" cold rolled steel channel.
- Sliding doors to have two four-wheel roller bearing truck/hangers enclosed in a galvanized steel box track and one steel channel bottom guide.
- Hinge doors to have 11/2 pairs of butt hinges bolted to door and transom frame.
- Locking to be hasps arranged for padlocking, or specify: cyclinder mortise type lock operated by key outside, recessed knob inside.
- All partitions to have 3" sweep space and include hardware and accessories for proper installation, specify partition to wall connection hardware separately.
- Finish to be powder coated.
|
|
|
| Room
without
Roof
Room with Roof |
| 2
Sides |
3
Sides |
4
Sides |
A' |
B' |
Ht' |
2
Sides |
3
Sides |
4
Sides |
| Model |
Model |
Model |
Model |
Model |
Model |
| BN660001 |
BN660016 |
BN660031 |
10 |
10 |
7 |
BN660046 |
BN660061 |
BN660076 |
| BN660002 |
BN660017 |
BN660032 |
20 |
10 |
7 |
BN660047 |
BN660062 |
BN660077 |
| BN660003 |
BN660018 |
BN660033 |
20 |
15 |
7 |
BN660048 |
BN660063 |
BN660078 |
| BN660004 |
BN660019 |
BN660034 |
20 |
20 |
7 |
BN660049 |
BN660064 |
BN660079 |
| BN660005 |
BN660020 |
BN660035 |
30 |
20 |
7 |
BN660050 |
BN660065 |
BN660080 |
| BN660006 |
BN660021 |
BN660036 |
10 |
10 |
8 |
BN660051 |
BN660066 |
BN660081 |
| BN660007 |
BN660022 |
BN660037 |
20 |
10 |
8 |
BN660052 |
BN660067 |
BN660082 |
| BN660008 |
BN660023 |
BN660038 |
20 |
15 |
8 |
BN660053 |
BN660068 |
BN660083 |
| BN660009 |
BN660024 |
BN660039 |
20 |
20 |
8 |
BN660054 |
BN660069 |
BN660084 |
| BN660010 |
BN660025 |
BN660040 |
30 |
20 |
8 |
BN660055 |
BN660070 |
BN660085 |
| BN660011 |
BN660026 |
BN660041 |
10 |
10 |
10 |
BN660056 |
BN660071 |
BN660086 |
| BN660012 |
BN660027 |
BN660042 |
20 |
10 |
10 |
BN660057 |
BN660072 |
BN660087 |
| BN660013 |
BN660028 |
BN660043 |
20 |
15 |
10 |
BN660058 |
BN660073 |
BN660088 |
| BN660014 |
BN660029 |
BN660044 |
20 |
20 |
10 |
BN660059 |
BN660074 |
BN660089 |
| BN660015 |
BN660030 |
BN660045 |
30 |
20 |
10 |
BN660060 |
BN660075 |
BN660090 |
|
|
|
