BOTTLE JACK



BOTTLE JACK
Model

Capacity(ton)

 Min.H. (mm) Lifting. (mm)   Adjust H. (mm) N.W(kg) Q'ty/Ctn Meas. (cm) 20'FCL(Pcs)
G0202   2 158 90 60 2.4 10 51x24x19 7300
G0202B   2 158 90 60 2.4 6 34x34x25.5 4536
G0402   4 180 110 60 3.3 5 58x13x21 5300
G0402B   4 180 110 60 3.3 6 55x22x30 3906
G0602   6 200 125 80 4.5 5 63x14x23 3920
G0602B   6 200 125 80 4.5 4 40x27x33 3024
G0802   8 200 125 80 5.6 4 53x14.5x23 3140
G1002   10 200 125 80 6.3 2 30x15x23 2790
G1202   12 210 125 80 7.5 2 32x16x24 2340
G1202S   12 170 85 50 6.4 2 32x16x24 2750
G1602   16 225 140 80 9.0 2 33x17x26 1956
G2002   20 235 145 60 11.5 2 37x18x27 1530
G2002S   20 190 95 50 9.6 2 37x18x22 1800
G2502   25 250 160 - 12.5 2 37x18x27 1400
G3202   32 285 180 - 18 2 38x20x31 970
G5002   50 285 180 - 23.0 1 22x21x32 765

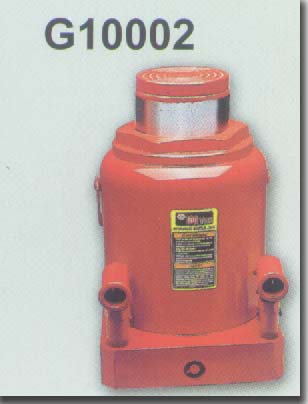

G10002   100 335 180 - 78.0 1 54x44x35 230



OTTLE JACK
Model

Capacity (ton)

 Min.H. (mm) Lifting. (mm)   Adjust H. (mm) N.W(kg) Q'ty/Ctn Meas. (cm) 20'FCL(Pcs)
G0203 2 181 116 48 2.7 6 32x23x21 6510
G0203B 2 181 116 48 2.7 6 54x25x29 4302
G0403 4 194 118 60 3.5 6 33.5x25x23 5022
G0403B 4 194 118 60 3.5 6 55x22x30 3860
G0603 6 216 127 70 4.6 4 26x25x25 3824
G0603B 6 216 127 70 4.6 4 40x24x33 3200
G0803 8 230 147 80 6.0 4 28x26x26 2932
G1003 10 230 150 80 6.6 4 29x28x26 2668
G1203 12 235 154 80 7.8 2 32x16x26.5 2256
G1603 16 230 150 80 9.1 2 32x17x26 1934
G2003 20 242 150 60 11.5 2 34x18x27 1530



OTTLE JACK
Model

Capacity (ton)

 Min.H. (mm) Lifting. (mm)   Adjust H. (mm) N.W(kg) Q'ty/Ctn Meas. (cm) 20'FCL(Pcs)
G0204 2 158 90 60 2.4 10 54x24x19 7300
G0204B 2 158 90 60 2.4 6 34x34x25.5 4536
G0404 4 195 125 60 3.5 8 47x26x23 5032
G0404B 4 195 125 60 3.5 6 55x22x30 3860
G0606 6 200 125 80 4.5 6 39x28x23 3918
G0804 8 236 160 80 6.7 4 31x29x27 3024
G1004 10 240 160 80 7.5 4 31x29x27 2348

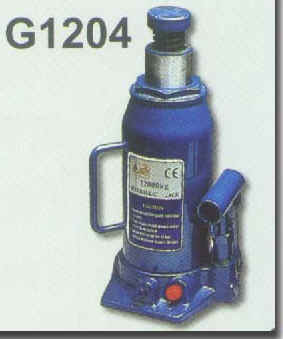

G1204 12 245 160 80 8.5 2 36x17x27 2070

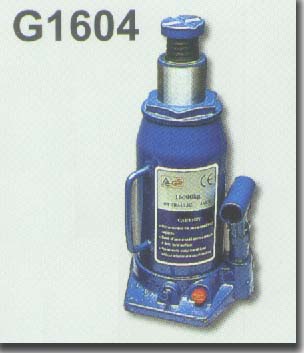

G1604 16 250 160 80 10.4 2 36x17x27 1692
G2004 20 250 160 80 11.5 2 37x18x27 1530
G3204 32 285 180 - 18.0 2 38x20x31 970
G5004 50 285 180 - 23.0 1 22x21x32 765



OTTLE JACK
Model

Capacity (ton)

 Min.H. (mm) Lifting. (mm)   Adjust H. (mm) N.W(kg) Q'ty/Ctn Meas. (cm) 20'FCL(Pcs)
GF0204 2 181 116 48 2.7 6 31x24x21 6510
GF0204B 2 181 116 48 2.7 6 59x26.5x30 4302
GF0404 4 194 117 60 3.5 6 37x25x22.5 5022
GF0404B 4 194 117 60 3.5 6 55x22x30 3860

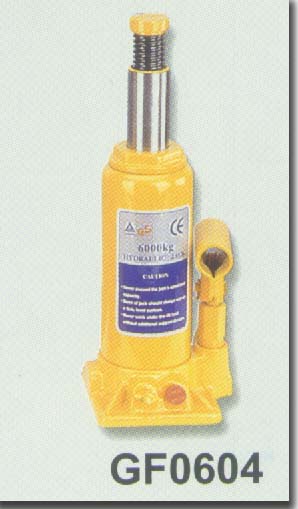

GF0604 6 216 127 70 4.6 4 27x26x24.5 3824
GF0604B 6 226 127 70 4.6 4 40x27x33 3200
GF0804 8 230 146 80 5.8 4 28x27x25.4 3032
GF1004 10 230 150 80 6.8 4 29x28x25.8 2588
GF1204 12 235 154 80 7.6 2 32x16x26.6 2310
GF1604 16 230 150 80 9.1 2 32x17.5x25.5 1943
GF2004 20 242 150 60 11.5 2 34x17.5x25.5 1530



OTTLE JACK
Model

Capacity (ton)

 Min.H. (mm) Lifting. (mm)   Adjust H. (mm) N.W(kg) Q'ty/Ctn Meas. (cm) 20'FCL(Pcs)
GH0204 2 158 90 60 2.4 10 51x24x19 7300
GH0204B 2 158 90 60 2.4 6 34x34x25.5 4536
GH0404 4 180 110 60 3.3 5 58x13x21 5300
GH0404B 4 180 110 60 3.3 6 55x22x30 3906
GH0604 6 200 125 80 4.5 5 63x14x23 3920
GH0604B 6 200 125 80 4.5 4 40x27x33 3024
GH0804 8 200 125 80 5.6 4 53x14.5x23 3140
GH1004 10 230 125 80 6.3 2 30x15x23 2790

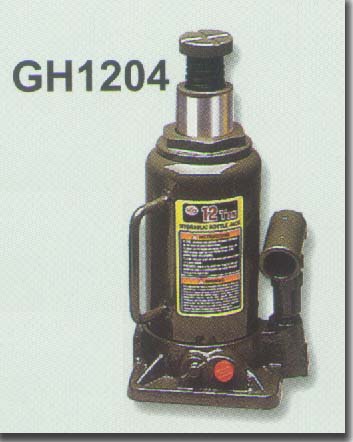

GH1204 12 210 140 80 7.5 2 32x16x23 2340
GH1604 16 225 140 80 9.0 2 32x17x26 1956
GH2004 20 235 145 60 11.5 2 37x18x27 1530

BOTTLE JACK
Model

Capacity (ton)

 Min.H. (mm)   Max.H. (mm) Lifting. (mm) Adjust H. (mm) N.W(kg) 20'FCL(Pcs)
GL0206 2 184 369 129 56 4.2 4098
GL0406 4 216 457 152 89 6.6 2600
GL0606 6 229 489 159 101 7.9 2300
GL0806 8 229 496 159 108 9.3 1750
GL1206 12 229 452 140 83 11.5 1360
GL2006 20 277 471 194 - 19.8 820
GL1206S 12 165 241 76 - 10.0 1600
GL2006 20 178 272 94 - 15.1 1180

BOTTLE JACK
Model

Capacity (ton)

 Min.H. (mm) Max.H. (mm) Lifting. (mm) Adjust H. (mm) N.W(kg) 20'FCL(Pcs)
G0205 2 178 343 115 50 2.6 6750
G0205B 2 178 343 115 50 2.6 4302
G0405 4 195 384 127 62 3.6 4884
G0405B 4 195 384 127 62 3.6 3860
G0605 6 205 412 135 72 4.6 3824
G0605B 6 205 412 135 72 4.6 3200
BOTTLE JACK
Model

Capacity (ton)

 Min.H. (mm) Max.H. (mm) Lifting. (mm) Adjust H. (mm) N.W(kg) 20'FCL(Pcs)
G0208 2 161 387 166 60 3.7 4400
G0408 4 229 535 245 60 6.5 2450
G0608 6 230 480 250 - 7.0 2500
G01208 12 230 500 220 50 11.0 1500
